Product Summary:

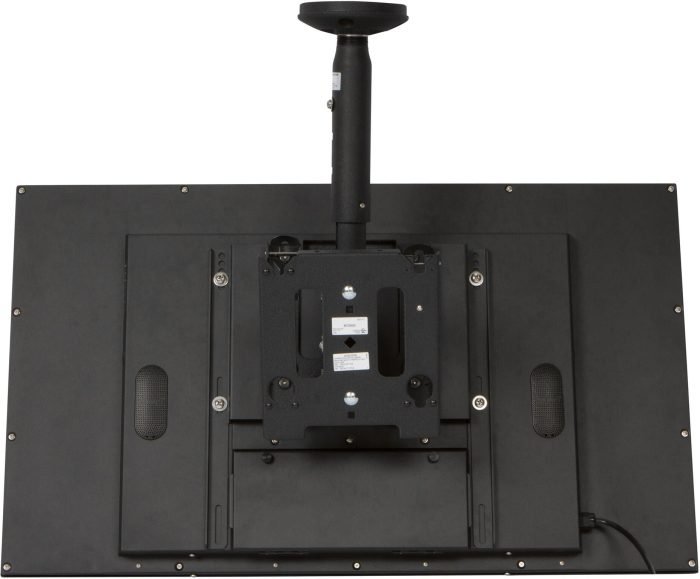

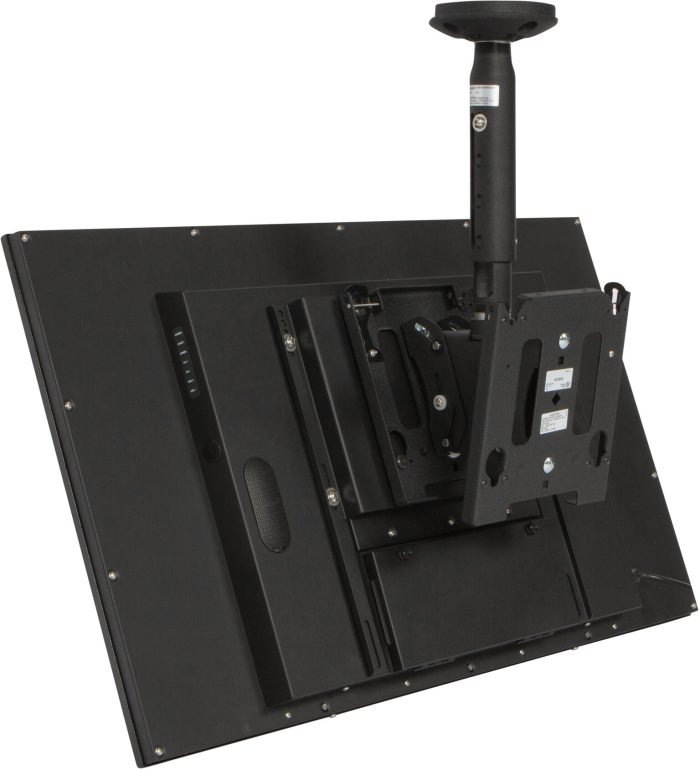

Need to hold two HDTV units in place? The SB-CMD46 dual ceiling mountoffers the strength needed for the job. This dual ceiling mount works with our Pro, Signature and Marquee Series HDTV, digital signage and touch screen models – 46″ & 55″ – portrait or landscape.

Available in black only.

To fully function, the SB-CMD46 requires:

  • the SB-CMS0203 adjustable extension column
  • angled ceiling plate adapter, SB-CMAP

Product Description:

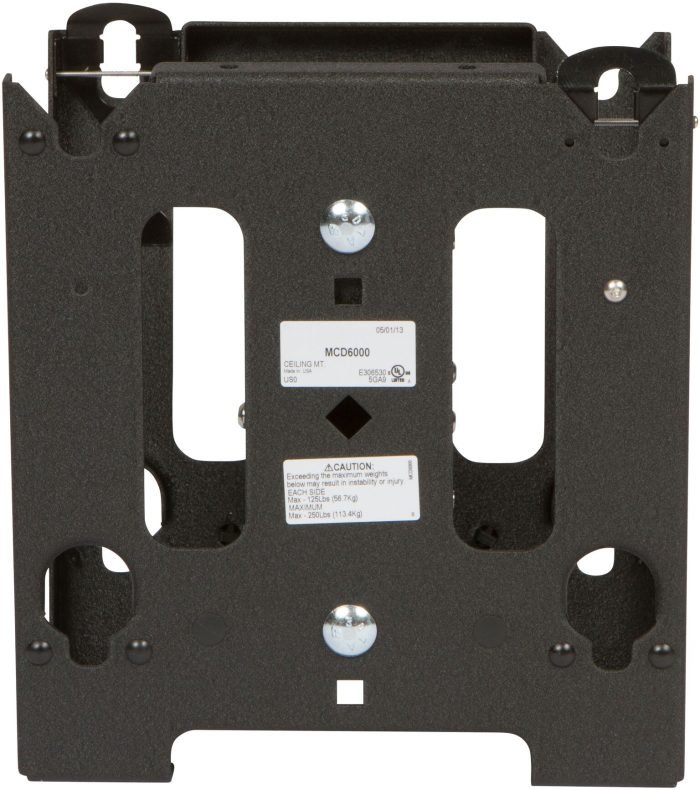

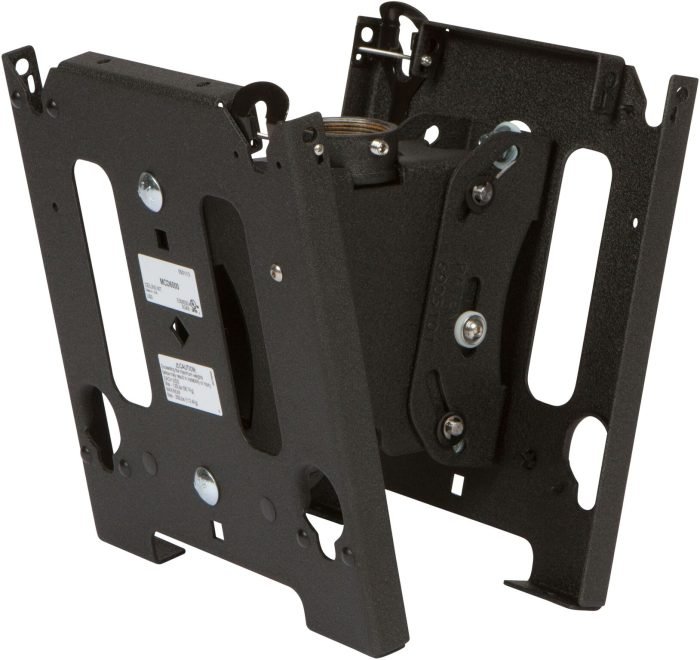

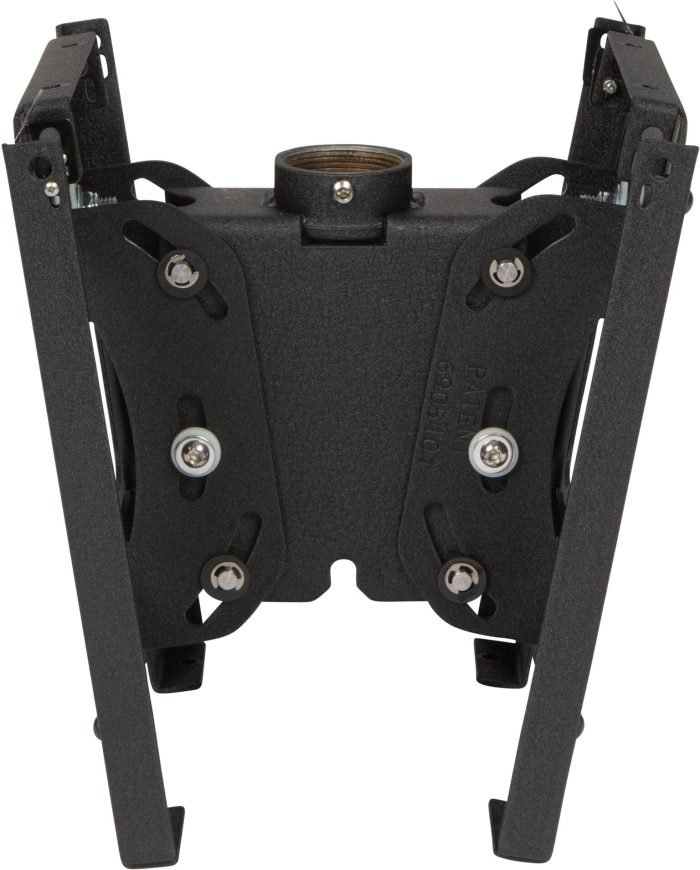

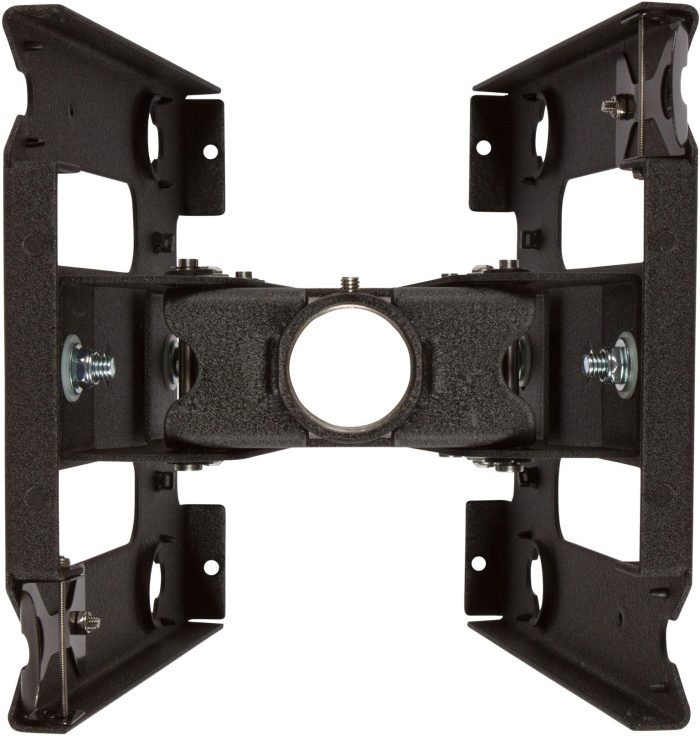

SB-CMD46Dual ceiling mount for 46″ or 55″ Pro Series, Signature Series or Marquee Series models
Holds up to 250 lbs
UL Rated

Key Features:

Certifications TÜV Certified, UL Listed
Color Black
Mounting Pattern Compatibility (Universal Versions) 100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm
Orientation Landscape, Portrait
Overall Dimensions (H x W x D) 11.0″ x 10.2″ x 8.0″ (280 x 258 x 202mm)
Post-Installation Leveling (Roll) Yes
Shipping Weight 30 lbs
Solution Type Universal
Tilt +5 degree, -20 degree
Typical Screen Sizes 30″ – 55″
Weight Capacity 125 lbs (56.7kg) per side
