Product Summary:

The SunBriteTV Wireless HD Transceiver (SB-HDWT) is a weatherproof, point-to-point wireless box that can transmit full 1080p HD up to 30 meters (or about 100 feet) line-of-sight (unobstructed path between sending and receiving antennas) via an HDMI-in and HDMI-out transceiver, creating a true, wireless outdoor TV experience.

Enjoy a wireless connection to your HD cable/satellite box, HD set-top box, Blue Ray DVD, DV-R and, of course, your game console.

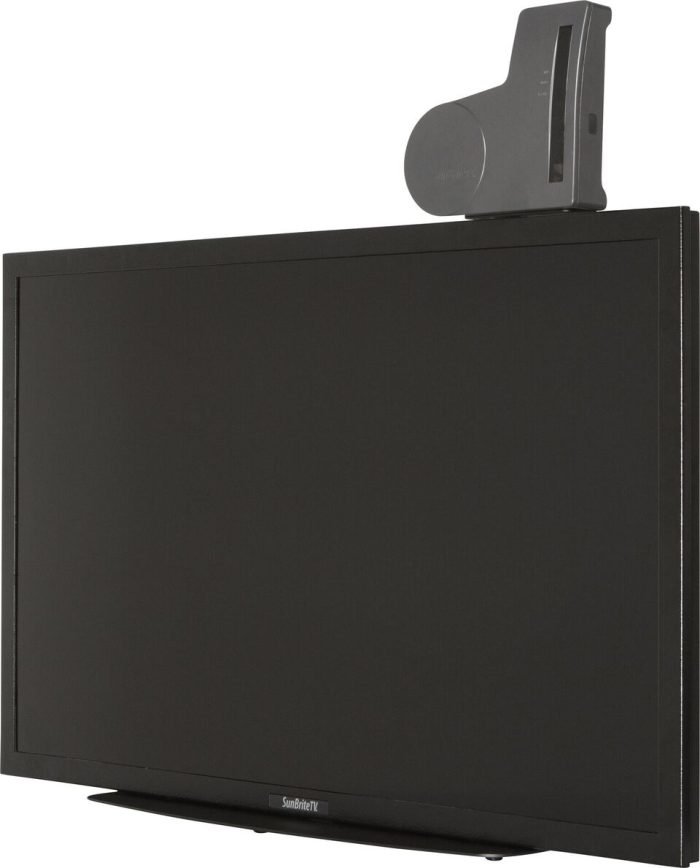

Pair the HDWT with your favorite SunBriteTV model to create your custom, unique outdoor living space or outdoor entertainment setting.

Important Note: SB-HDWT is not compatible with 4K devices.

Product Description:

  • SB-HDWT for SunBriteTV outdoor televisions
  • HD wireless device with built-in IR extender
  • Supports 1080P resolution
  • 100 feet (30 meters) line-of-sight (unobstructed path between sending and receiving antennas)

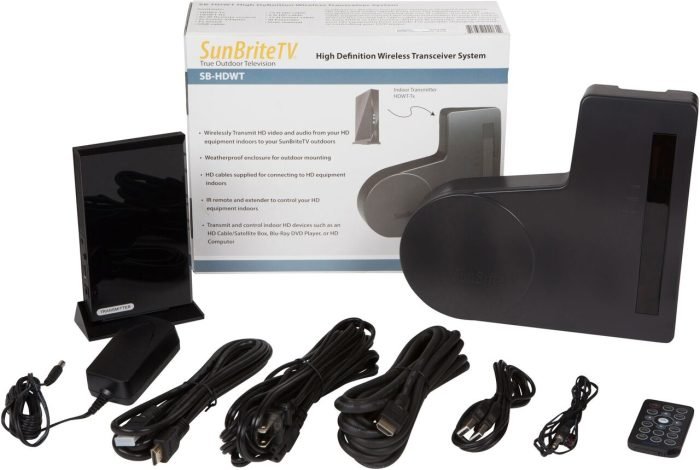

  • Includes 15′ HDMI, 15′ power cord, AC adapter and 4′ IR cable

Key Features:

HD Wireless Transceiver SB-HDWT
Supported video resolution 1080p,720p,1080i,576p,480p
HDMI Interface Supports HDMI video-audio format and HDCP2.0 with video encryption
Transmission Distance Up to 100 feet (30 meters) line-of-sight (LOS) (unobstructed path between sending and receiving antennas)
Operating Frequencies 4.9~5.9GHz (with DFS function)
Bandwidth 40Hz
Frequency Stability +/-4ppm
Transmission Power >=12dBm | >=17dBm
Receiving Sensitivity <=-75dBm | <=-65dBm
Antenna Omni-directional internal antennas
Supporting Link Speeds 2.5Gbps
Certification CE、FCC、RoHS
Regulations WHDI1.0
Power Supplies AC 100~240V,5V 2.5ADC Power Adapter
IR Function 3.5mm jack plug, External IR, Transmitter Eye, Built-in Infrared Remote-control Receiver Module
Working temperature 0℃~70℃
Dimensions 9 ¾ X 8 ½ X 2 ¼
Weight 1100g (2.43 lbs)
Shipping Weight 5 lbs
Residential Warranty One year, in-factory, parts and labor
Commercial Warranty One year, parts and labor year
