This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. Tilts 13-degrees forward to 8-degrees back.
This mount is primed with a dependable powder coating, as well as two layers of a durable, corrosion-resistant coating for added protection against scratches. Plus, stainless steel hardware means you’ll never have to worry about rust.
Post Install Leveling:
We understand the pain of having to re-level an installed mount, so this mount includes post-install leveling screws for last minute adjustments.
Underneath a beautiful black powder coat is solid steel, so you know that when you mount your TV, it’s there to stay.
Our wall-hugging mount features a low profile feel and minimal mounting depth of 2.25″.
200×200, 200×300, 300×200, 300×300, 400×300, 400×400, 500×400, 500×500, 600×400, 600×500, 600×600, 700×500
165 lb. weight capacity
This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. A durable steel construction, finished in an outdoor-rated coating, ensures this mount withstands even the harshest of elements without rusting. Plus, post-install leveling screws and lockable tabs make installation a breeze.
User-friendly wall mounting plate: The center bolt hole location includes a notch so you can drill into your surface for temporary hanging. It’s reversible so there is no set top or bottom, which means no confusion. The wide mouth in the center allows for easy placement over a large Midi plate.

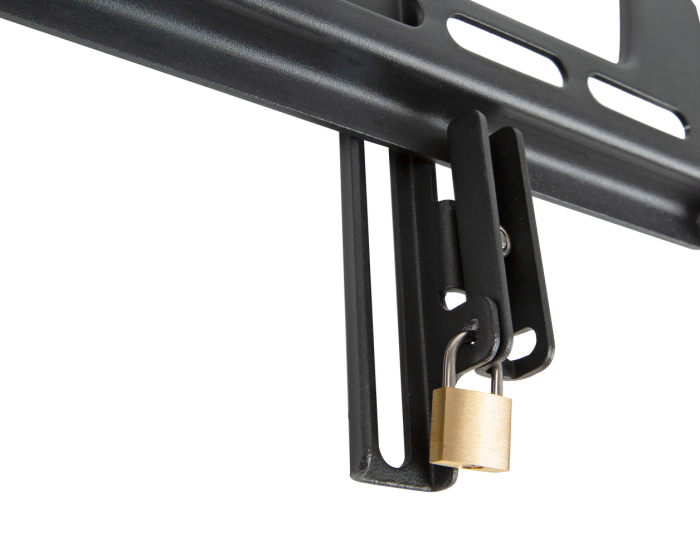

This SunBriteTV tilt mount includes LokTight™ rotating lockable tabs directly on the arms themselves. The lockable tabs keep the arms against the mount, eliminate easy lifting from curious kids, and allows for a locking device to be added for security
Bracket Bolt Size – Currently SunBriteTV X-Large tilt and fixed mounts include mounting bracket bolts in sizes up to M8 (8mm). Some 65″+ HDTVs require M10 mounting bracket bolts. Please check your HDTV’s mounting holes prior to installation.
Spacers – For all Veranda Series TVs, spacers will be needed in order to accommodate the plug and media bay access behind the TV.
Strength & integrity are crucial ingredients in flat panel mounts. Rest assured we understand and continue to uphold our product quality by getting the most effective “guarantee-on-a-box” we can provide – UL approval.
|Dimensions – Product||29.39″ x 20.87″ x 2.25″|
|Dimensions – Shipping||34″ x 11.5″ x 12″|
|Weight – Product||8.6 lbs|
|Weight – Shipping||11 lbs|
|Distance Extended / Depth||2.25″ Profile|
|Tilt||13° Forward / 8° Back|
|Maximum TV Size||80″|
|Minimum TV Size||37″|
|VESA Mounting Pattern||200×200, 200×300, 300×200, 300×300, 400×300, 400×400, 500×400, 500×500, 600×400, 600×500, 600×600, 700×500|
|Maximum Load Support||165 lbs|
