This mount is primed with a dependable powder coating, as well as two layers of a durable, corrosion-resistant coating for added protection against scratches. Plus, stainless steel hardware means you’ll never have to worry about rust.
Great Extension, Swivel, and Tilt:

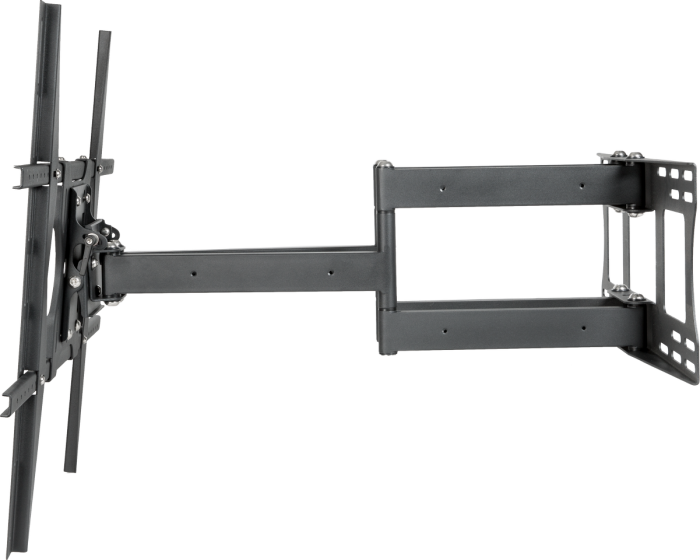

An extended distance of 30″ provides easy access behind the TV. With 180-degrees of swivel and -5/+15 degrees of tilt, get a great viewing angle from almost any mount location.
Underneath a beautiful black powder coat is solid steel, so you know that when you mount your TV, it’s there to stay.
200×100, 200×200, 200×300, 300×200, 300×300, 400×300, 400×400, 500×400, 500×500, 600×400, 600×500, 600×600, 700×500, 700×600, 700×700, 800×500, 800×600
150 lb. weight capacity

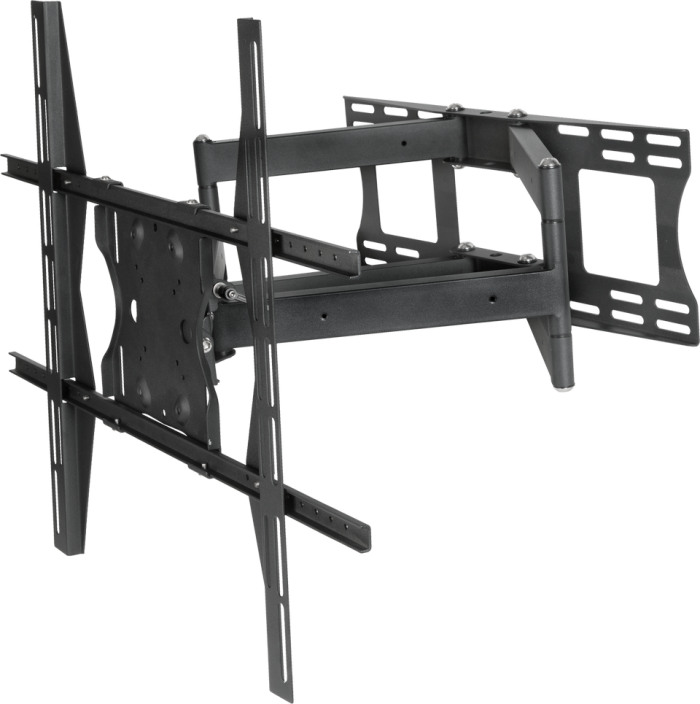

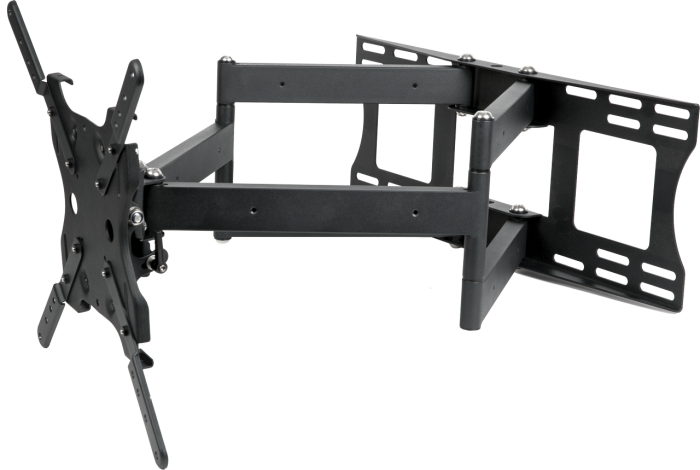

This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. A durable steel construction, finished in an outdoor-rated coating, ensures this mount withstands even the harshest of elements without rusting. Plus, a smooth articulating motion makes installation easy and allows for viewing flexibility.

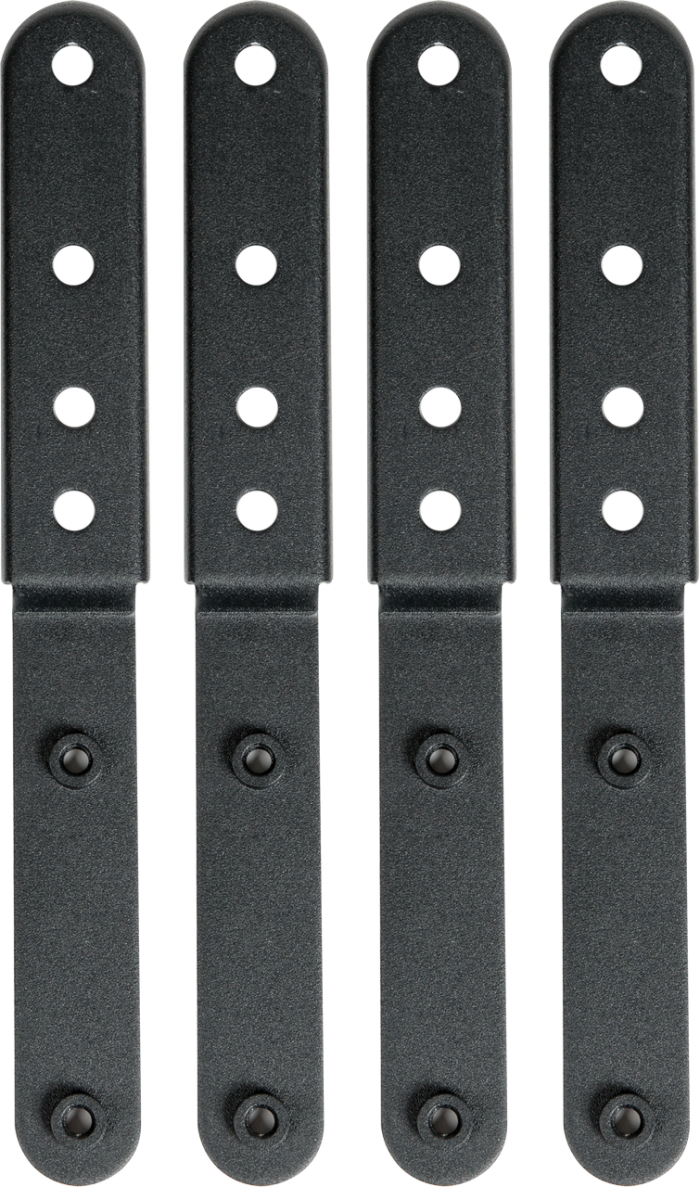

Important Note – For the Veranda 55” TV, please use the adapter brackets and spacers (included) to allow entry into the media bay access behind the TV. To fit SunBriteTV models, no brackets need to be cut or modified.

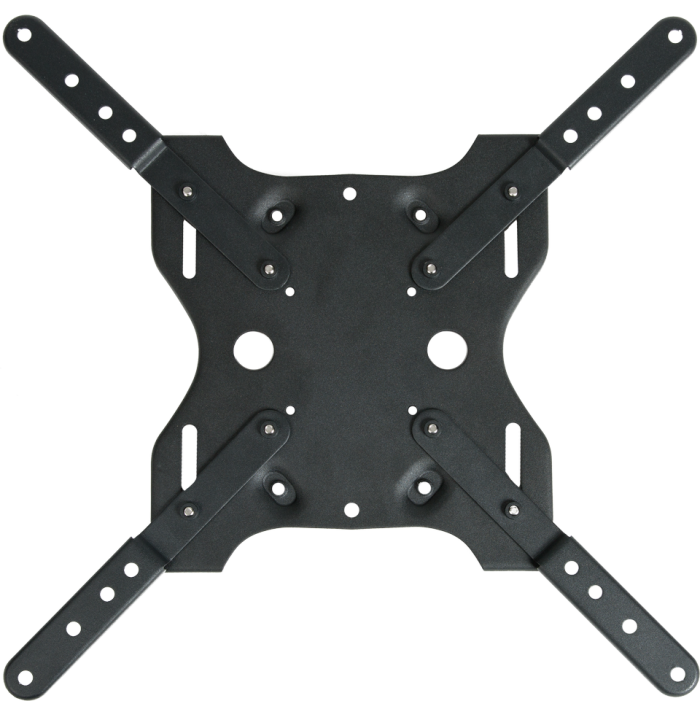

Distance Retracted: 3.5″ with Adapter Plate, 3″ without Adapter Plate
Strength & integrity are crucial ingredients in flat panel mounts. Rest assured we understand and continue to uphold our product quality by getting the most effective “guarantee-on-a-box” we can provide – UL approval.
|Dimensions – Product||31.4″W x 25.6″H x 3.6″D|
|Dimensions – Shipping||33.7″W x 14.7″H x 5.2″D|
|Weight – Product||36 lbs|
|Weight – Shipping||37.6 lbs|
|Distance Extended / Depth||30.6″|
|Tilt||– 5 / + 15°|
|Maximum TV Size||80″|
|Minimum TV Size||37″|
|VESA Mounting Pattern||200×100, 200×200, 200×300, 300×200, 300×300, 400×300, 400×400, 500×400, 500×500, 600×400, 600×500, 600×600, 700×500, 700×600, 700×700, 800×500, 800×600|
|Maximum Load Support||150 lbs|
